Specification

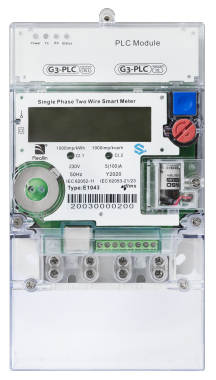

E1043
交流產品-智能電能表：E1043
Single Phase Two Wire Smart Meter Active/Reactive Energy, Net Energy, Import/Export Energy Measurement Various Extended Communication Technology Capability Smart Meter Features (Interoperability, Remote Communication, Load Control, Power Quality Detection) Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing) Daily,Monthly And Load Profile For Billing And Analysis IEC And High Durability Test Certificates
主要功能
Active/Reactive Energy, Net Energy, Import/Export Energy Measurement
Various Extended Communication Technology Capability
Smart Meter Features (Interoperability, Remote Communication, Load Control, Power Quality Detection)
Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing)
Daily,Monthly And Load Profile For Billing And Analysis
IEC And High Durability Test Certificates
參數明細
Type
Single Phase Two Wire Smart Meter
Standards
IEC 62052-11, IEC 62053-21/23/31, IEC62056-21/42/53/61/62,
IEC 62059-32-1
IEC 62059-32-1
Voltage
Rated voltage Un
Voltage range
230V
70%Un 120%Un
Current
Reference current Ib
Maximum current Imax
Starting current Ist
10A
100A
0.4%Ib
Rated Frequency Fn
50Hz
Accuracy
Class 1.0 for Active; Class 2.0 for Reactive
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh;1000imp/kvarh
1000imp/kWh;1000imp/kvarh
Environment
Temperature range
Operation: -25 70℃
Storage: -40 85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
7 digits with configurable decimal place, backlight supported
Backup Power
Replaceable battery and Internal super capacitor
RTC
Provides RTC with clock accuracy accordingly to IEC62054-21
Communication Interface
1*Ooptical port
1*RS232
1*Module compartment (Cellular,RF,PLC or LoRa)
1*RS232
1*Module compartment (Cellular,RF,PLC or LoRa)
Communication Protocol
DLMS
I/O Interface
2*Input port
2*Output port
2*Output port
Load Control
Built-in type latching relay
Maximum 250V,120A
The utilization category is UC3 according to IEC62052-31
Maximum 250V,120A
The utilization category is UC3 according to IEC62052-31
Weight Of Meter
About 0.9kg

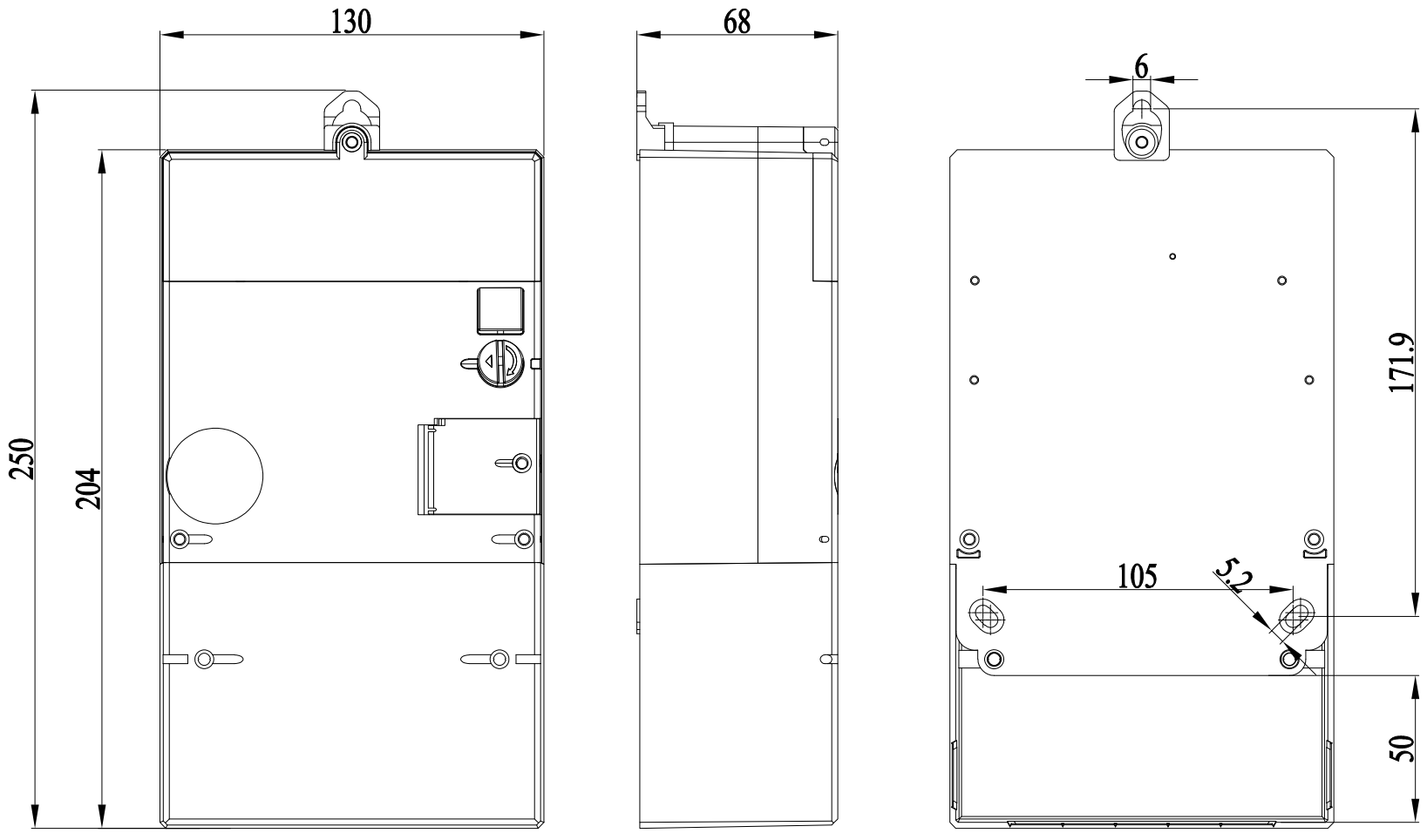

Dimension(LxWxD)
250.0 x 130.0 x 68.0mm
